DA15 single ear microphone & earpiece
Recently awarded a trophy for it's design and unique concept at the 2009 AES show in New York, the DA15 is Que Audio's latest release single ear microphone with an in-ear monitor piece. Using the same capsule as the DA12, it provides full monitoring or communication capability with a neatly designed ear piece incorporated into the ear cushion. The ear piece has two drivers to ensure high quality audio monitoring.
The product was designed after one of Australia's leading TV stations wanted a microphone for commentary and monitoring for race car meetings. It also has huge potential for many other sporting applications.
The DA15's are also being used as comms head sets by the production team on a major US late night TV talk show.
| Model No. |
DA15 |
| Capsule |
Back electret condenser |
| Polar Pattern |
Omni-directional |
| Frequency Response |
20Hz-20KHz |
| Sensitivity |
-35±3dB (DA12A), -45±3dB (DA12B) |
| Equivalent noise (A-weighted) |
25dB SPL |
| Output Impedence |
2Kn±30% |
| SPL max |
140dB |
| Operating Voltage |
0.9 VDC (optimal), 5 VDC (maximum) |
| Cable |
1.2mm diameter |
| Mic Capsule Dimension |
2.5mm diameter |
| Accessories |
Windscreen, leatherette zipper case |

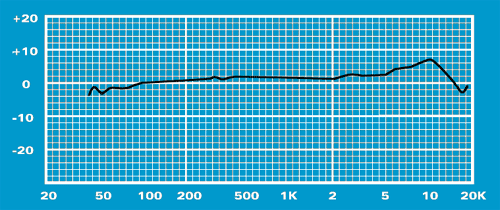

Frequency Response
|
|
Features & Benefits
| » | Water Resistant |
| » | (Longer lasting capsule) |
| » | Flat Frequency Response |
| » | Discrete (2.5mm diameter) |
| » | Lapel or Headset Options |
| » | Different Sensitivity Options |
Applications
| » | User-friendly for new and experienced users alike |
| » | Excellent for singing and spoken word applications |
| » | Extremely popular in houses of worship, theatre and outdoor settings |
| » | Directional version is ideal for situations with loud monitors, extreme feedback or environmental noise |
|
