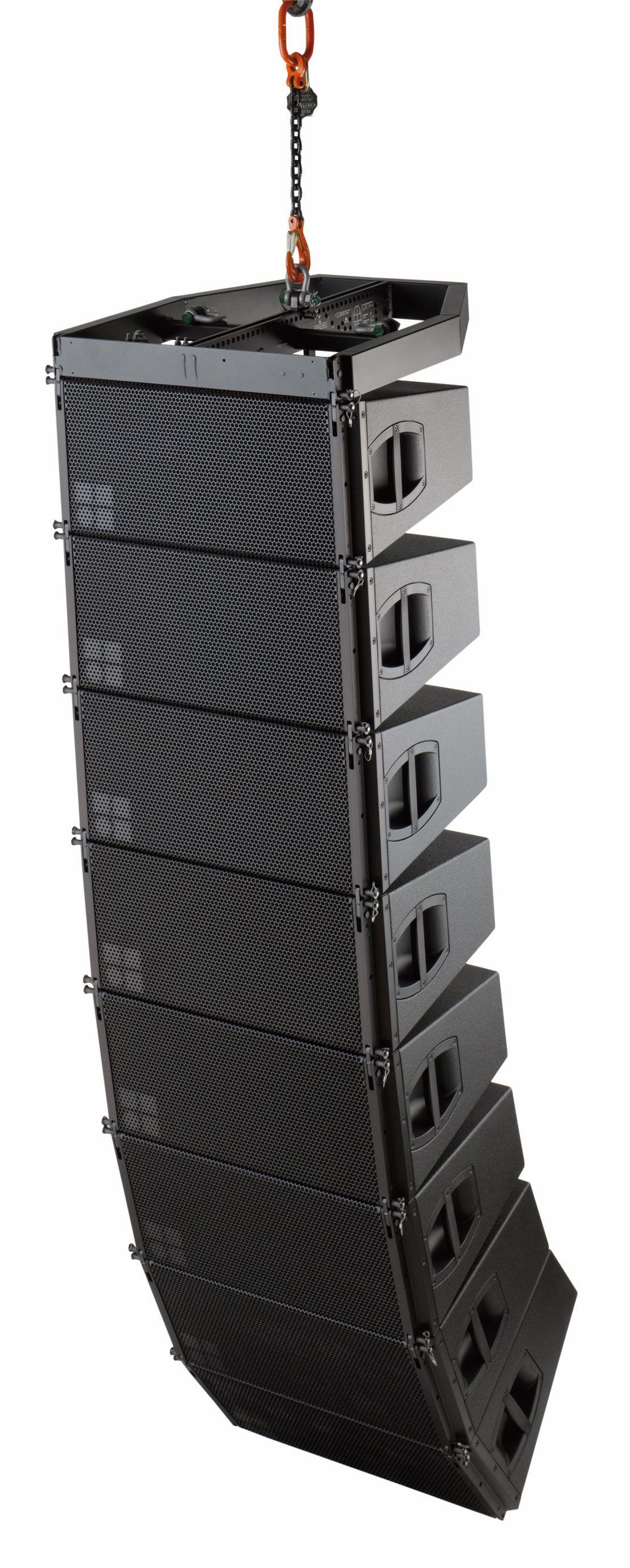

The compact Y12 line array loudspeaker is designed for use in vertical columns. The 2-way passive design features two 8 drivers in a dipole arrangement and a centrally mounted 1.4 compression driver with a wave transformer. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These high performance line array modules offer 120 horizontal directivity controlled down to 500 Hz. The mechanical and acoustical design enables vertical arrays of up to twenty four loudspeakers with vertical splay angles from 0 to 14 with a 1 resolution. It can be used in columns of purely Y12 loudspeakers or combined with Y8 and/or Y-SUB cabinets.
The Y12 can be driven either by the d&b D6, D12, D20 D80, D40 amplifiers configured to the Y8 setting.
