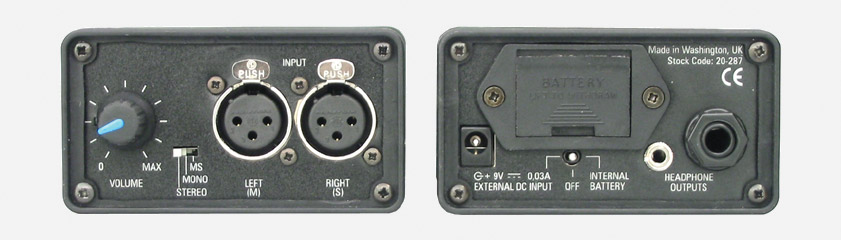

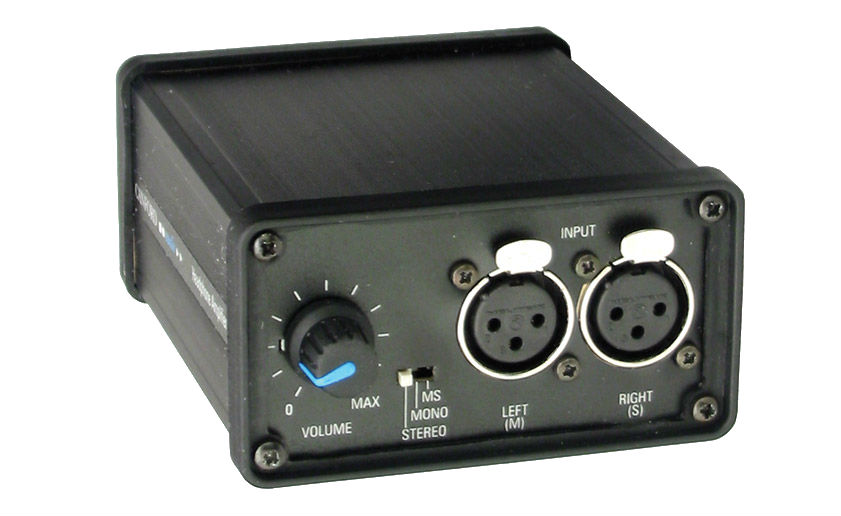

The Canford Audio battery powered headphone amplifier allows connection of stereo headphones to nominally line level sources. Two high impedance, electronically balanced inputs (with DC protection), are provided via two female 3-pin XLR connectors. A three-position, slide switch selects between A/B stereo, MS stereo or mono (A+B) formats on the XLR inputs.
The amplifier is built in a robust standard extruded box, fitted with protective ABS bezels. The single 9V battery, externally accessible, provides a high quality, healthy output, with the unit offering an overall gain of 14dB. A three-position toggle switch selects between internal battery, external DC (9V) and off.
