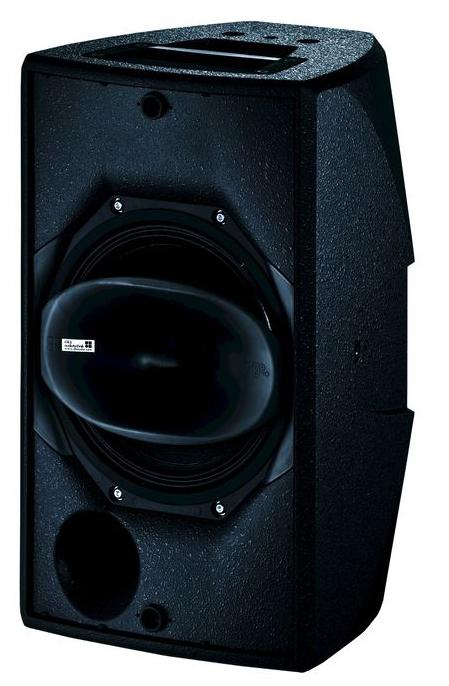

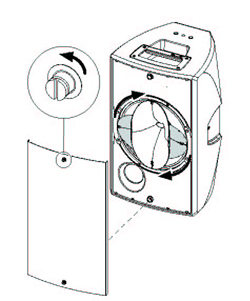

The E8 is a high performance 2-way multipurpose loudspeaker employing an integrated coaxial driver. The E8 can be used for speech and music applications as a stand-alone full range system, or incorporated into larger distributed sound reinforcement situations. The multi faceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The 90 x 50 dispersion pattern (h x v) of the horn is easily rotatable through 90 to provide a 50 x 90 dispersion pattern. The E8 cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating a handle and a socket to accept loudspeaker stands.
The E8 can be driven either by the d&b D20, D80, D6 or D12 channel power amplifiers configured for the E8. When the E8-X configuration is selected the E8 can be driven passively in parallel with the E12X-SUB from the same amplifier channel.
