The GEO M620 is a full-range unit for stand-alone, curved array or line array application. Extremely compact in size (191 x 373 x 260 mm), the M620 module punches well above its weight of less than 10 kgs.

Using a NEXO-designed long-excursion high-efficiency 6.5 inch LF driver and a 1 inch throat driver on a BEA/FEA optimised HR Wavesource, the M620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of 127dB.

HF dispersion is 80 or 120 horizontal, with 20 vertical coverage, 0 to 20 splay when arrayed. Using NEXOs HRW patented waveguide for optimum HF coupling between elements, the M620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.

Comprising of:

1 x FLIGHTCASE FOR 6 x NEXO GEO M6 GMT-6CASE (Ex-Rental)

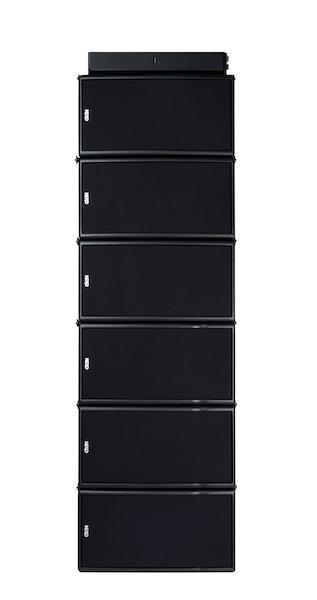

6 x NEXO GEO M620 80 DEGREE ARRAY LOUDSPEAKER (Ex-Rental)
24 x NEXO GEO M6 QUICK RELEASE PIN - VXT-BL515 (Ex-Rental)
6 x NEXO 05GEOM6LKB M6 REAR LINK BAR (Ex-Rental)
1 x NEXO GEO M6 EXTENSION BAR +/-30 DEGREE - GMT-EXBAR (Ex-Rental)
1 x NEXO GEO M6 TOURING BUMPER (max 15) - GMT-BUMPER (Ex-Rental)
2 x NEXO GEO M6 POLE MOUNT TOP HAT/TILT PLATE - VNT-POLE (Ex-Rental)
2 x NEXO GEO M6 LIGHT BUMPER (max 3) - GMT-LBUMP (Ex-Rental)

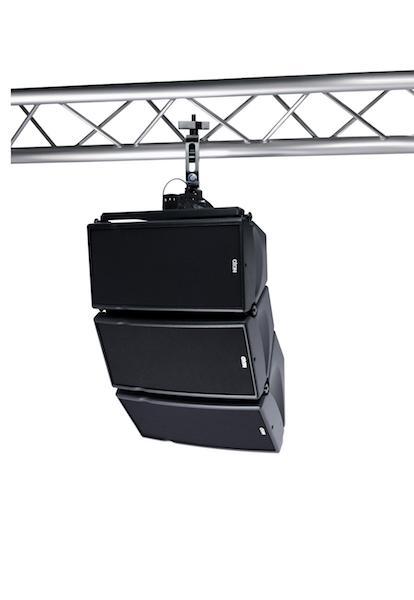

2 x NEXO NEXO TRUSS CLAMP - VNT-TCBRK (Ex-Rental)
