£220.00 + vat

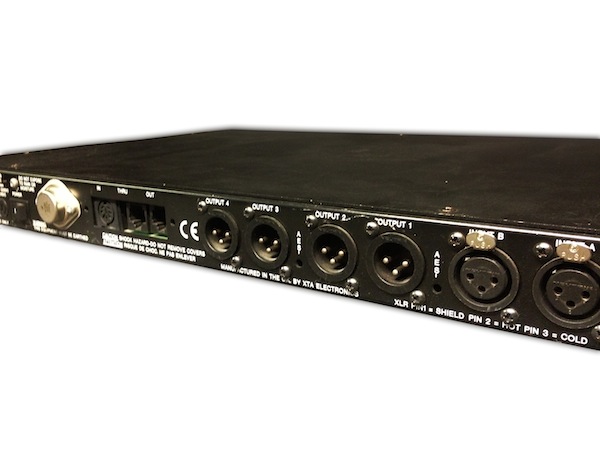

The DP200 is a compact and powerful DSP based audio processing unit, ideally suited for fixed installations, where it combines the functions of multiple conventional products in a compact 1U high unit. To achieve this the DP200 provides:- 2 input 4 output format, 10 configurations including 4 crossover modes, 4 x 8 bands of parametric equalisation, up to 682mS delay, variable High and Lowpass filters, 4 output limiters and digital level controls for each output. Each parametric section can be positioned between 20Hz & 20kHz, features a wide range of Qs and has +15dB to -30dB gain available, controllable in 0.1dB steps. The first two sections can also be designated a Low or High frequency shelving filter. MIDI control and user memories are provided, and also a multi-level security lock-out function for all controls. The DP200 is also available with optional AES/EBU inputs and outputs. The DP200 is designed for quick adjustment via easy-to-use front panel controls, or it can be controlled externally by XTAs AudioCore Windows control software, along with both existing and future AudioCore series products.
£220.00 + vat
