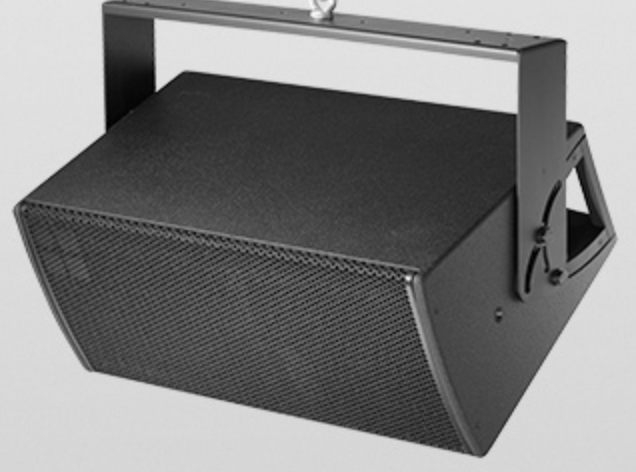

The compact, 2-way passive Y7P loudspeaker features two 8 inch neodimium drivers positioned in a dipole arrangement, with a 1.4 inch compression driver mounted onto a rotatable CD horn. Sophisticated horn geometry combined with the advanced bass-reflex port design delivers full bandwidth capabilities with an extended LF output. These point source, high performance cabinets offer 75 horizontal directivity matched with a vertical dispersion of 40; the horn can be rotated by 90 to enable horizontal orientation. The Y7P provides a broad variety of deployment possibilities, especially when used as a stand-alone full range system, or combined with other elements from the Y-Series, either ground stacked or flown.
The Y7P can be driven by the d&b D6/D12/D80/D20 amplifier configured for the Y7P. More detailed information on specific loudspeaker setups with d&b amplifiers is available either in the relevant loudspeaker or amplifier manual.
